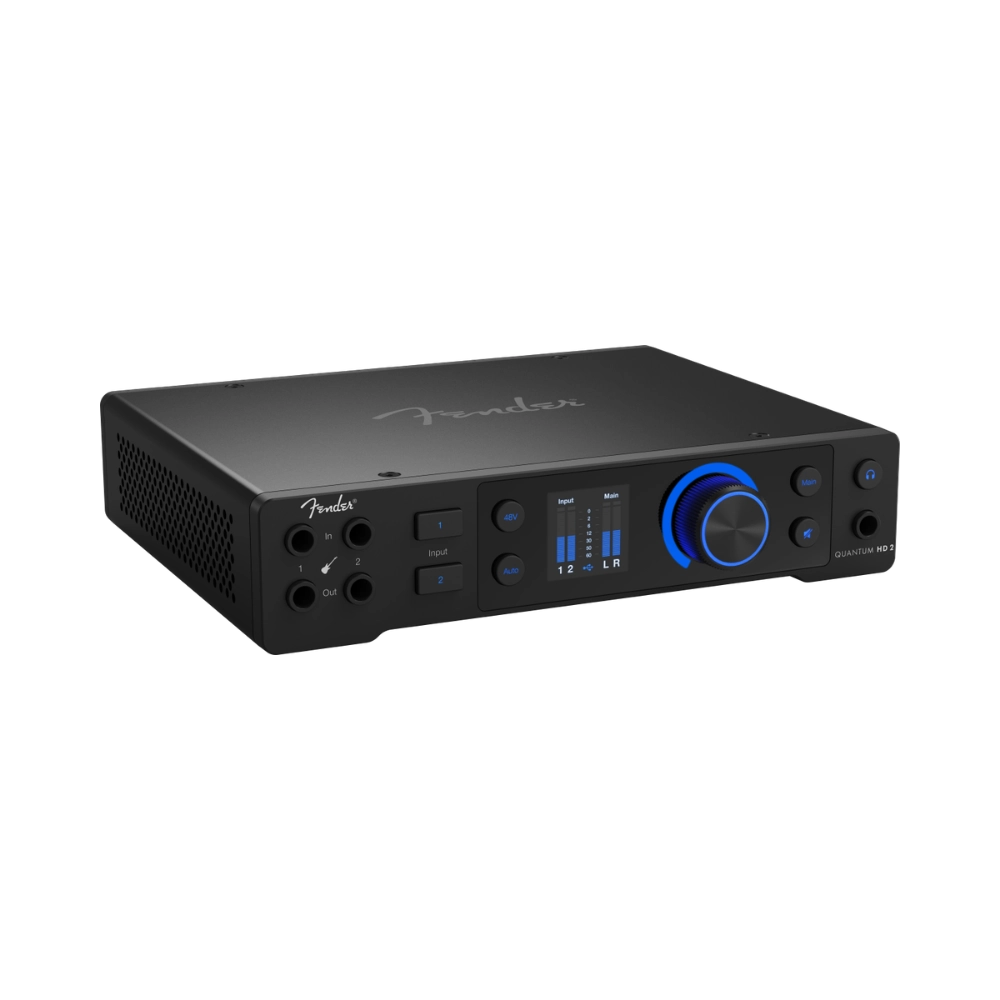

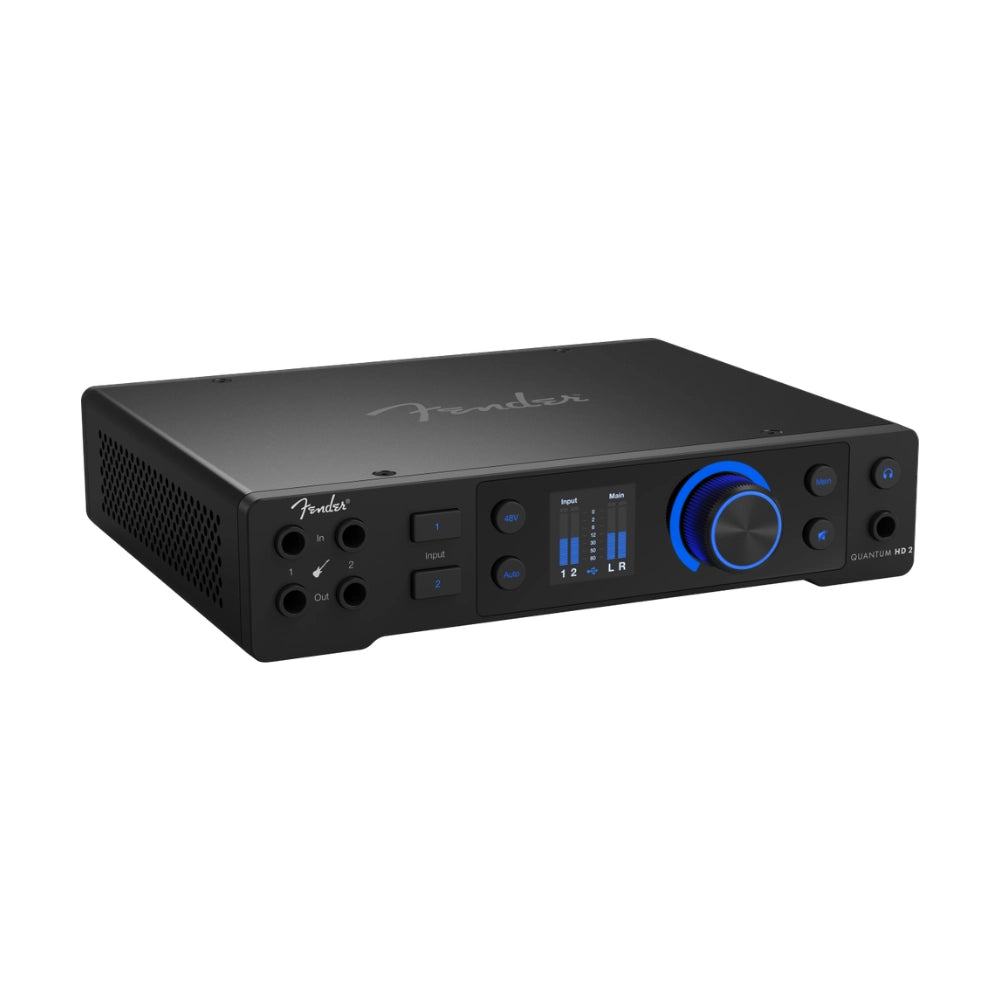

Fender Studio 2777706608 Quantum HD 2 USB-C Audio Interface

The Fender Quantum HD 2 is a 20 x 24 USB-C interface designed for musicians, producers, and project studios who demand accuracy, clarity, and flexibility. Featuring next-generation MAX-HD mic preamps, ultra-low-latency drivers, and high-performance converters, the HD 2 captures every nuance of vocals, guitars, bass, and full-band sessions with professional precision.

Front-facing Fender instrument inputs provide transparent, studio-ready recordings for guitar and bass, while Auto Gain simplifies setup and re-amp outputs allow tonal experimentation without extra takes. Integrated DSP monitor mixing and loopback routing streamline streaming, podcasting, and recording workflows.

Control preamp gain, phantom power, and monitoring remotely via the Fender Studio Pro or Universal Control app for seamless integration. Ideal for project studios, the Fender Quantum HD 2 balances compact size with professional-grade I/O.

Features:

-Professional software included: Fender Studio Pro perpetual license
-Ultra-high-fidelity USB-C recording interface with MAX-HD mic preamps
-20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters
-Expanded Digital I/O: 16 ADAT channels and S/PDIF I/O.

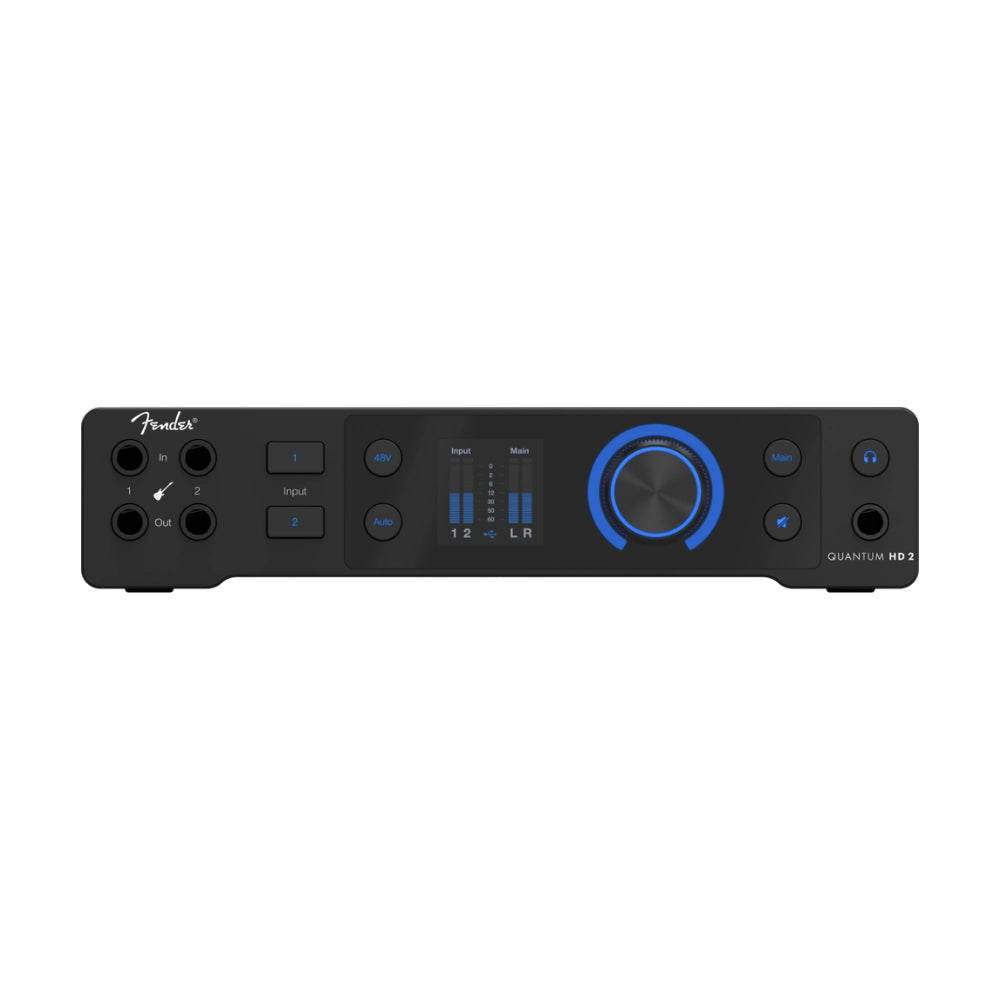

-Front-facing Fender instrument inputs optimized for guitar and bass
-Auto Gain button for instant, hassle-free recording levels
-Re-amp outputs for creative tone exploration with amps and pedals
-DSP monitor mixer and loopback routing for streaming and monitoring
-Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app

Specifications:

 General
Series: Quantum
Color: Black
Country Of Origin: Malaysia
 Electronics
Headphone Jack: One - 1/4" TRS Female Stereo
Connectivity: USB-C®
Voltage: 230V EUR
Phantom Power: +48 VDC
Performance
Digital Audio Bit Depth: 32-bit
Digital Audio Dynamic Range: 124 dB
 Inputs
Instrument Inputs Dynamic Range: 111 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Instrument Inputs Gain Range: 75 dB
Instrument Inputs Maximum Level: +21 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range: 118 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Line Inputs Gain Range: ± 10 dB
Line Inputs Impedance: 10K Ohms
Line Inputs Maximum Level: +18 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion: 0.001% (1 kHz, Minimum Gain)
Microphone Input Connection Type: XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range: 116 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise: -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
Microphone Preamp Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Microphone Preamp Gain Control Range: 75 dB
Microphone Preamp Input Impedance: 1600 Ohms
Microphone Preamp Maximum Input Level: +18 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion: 0.002% (1 kHz, Minimum Gain)
 Outputs
Headphone Outputs Dynamic Range: 118 dB (A-Weighted)
Headphone Outputs Frequency Response: 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Headphone Outputs Impedance Working Range: 33 Ohms
Headphone Outputs Maximum Output: 11 dBu (50 Ohms)
Headphone Outputs Total Harmonic Distortion: 0.001% (1 kHz)

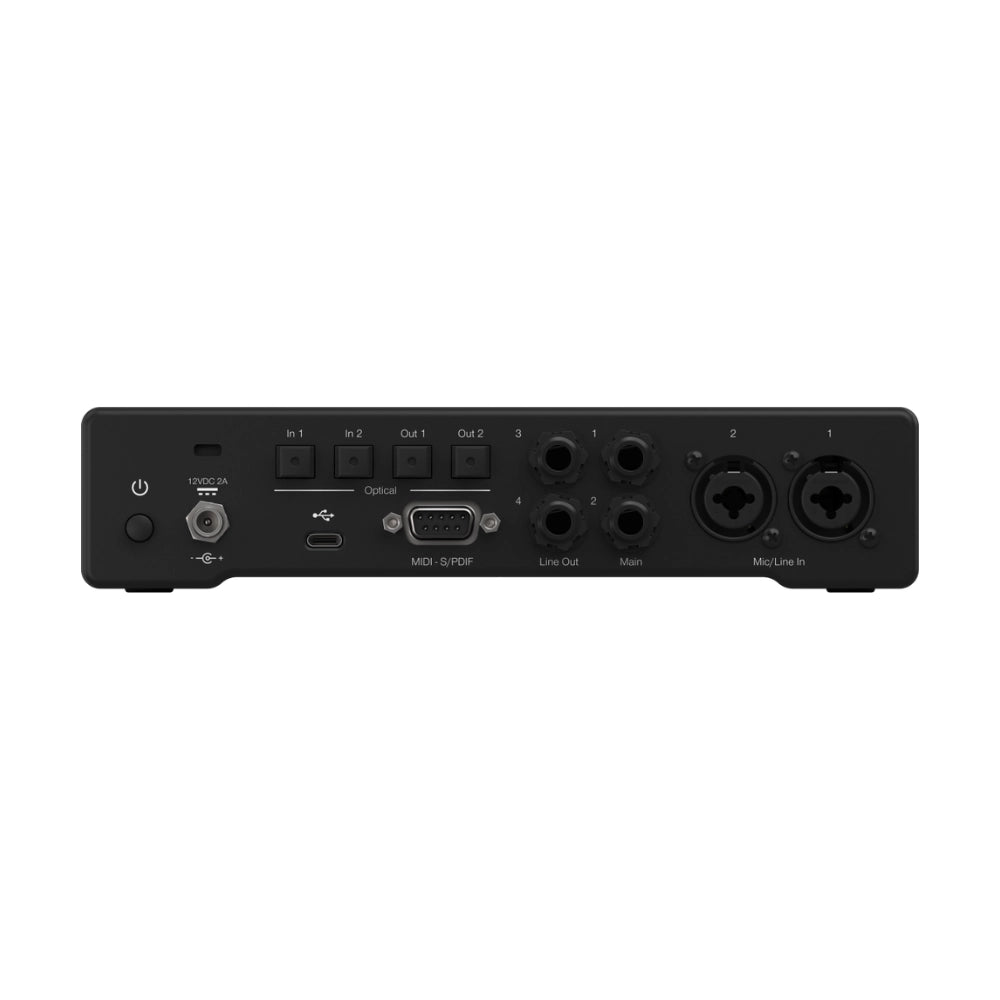

Line Outputs Connection Type: 1/4" TRS Female
Line Outputs Maximum Output Level: +18 dBu (Balanced)
Line Outputs Output Impedance: 51 Ohms
Main Outputs Connection Type: 1/4" TRS Female
 Hardware
MIDI IO: 5-Pin Female DIN
 Accessories
Included Accessories: DB-9 breakout cable, 1.5M USB-C to USB-C cable
 Miscellaneous
Power Cable: 12 VDC, 2A External Power Supply (Factory Configured, Included)
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
