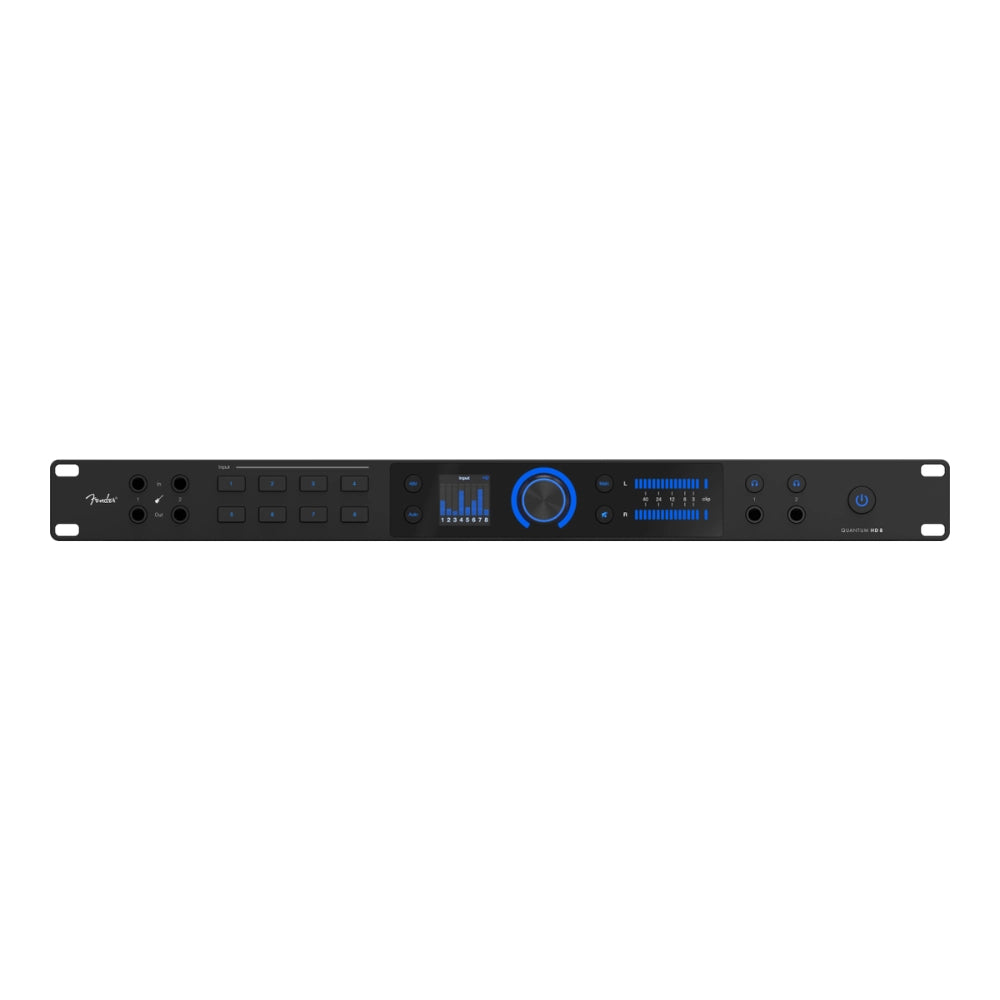

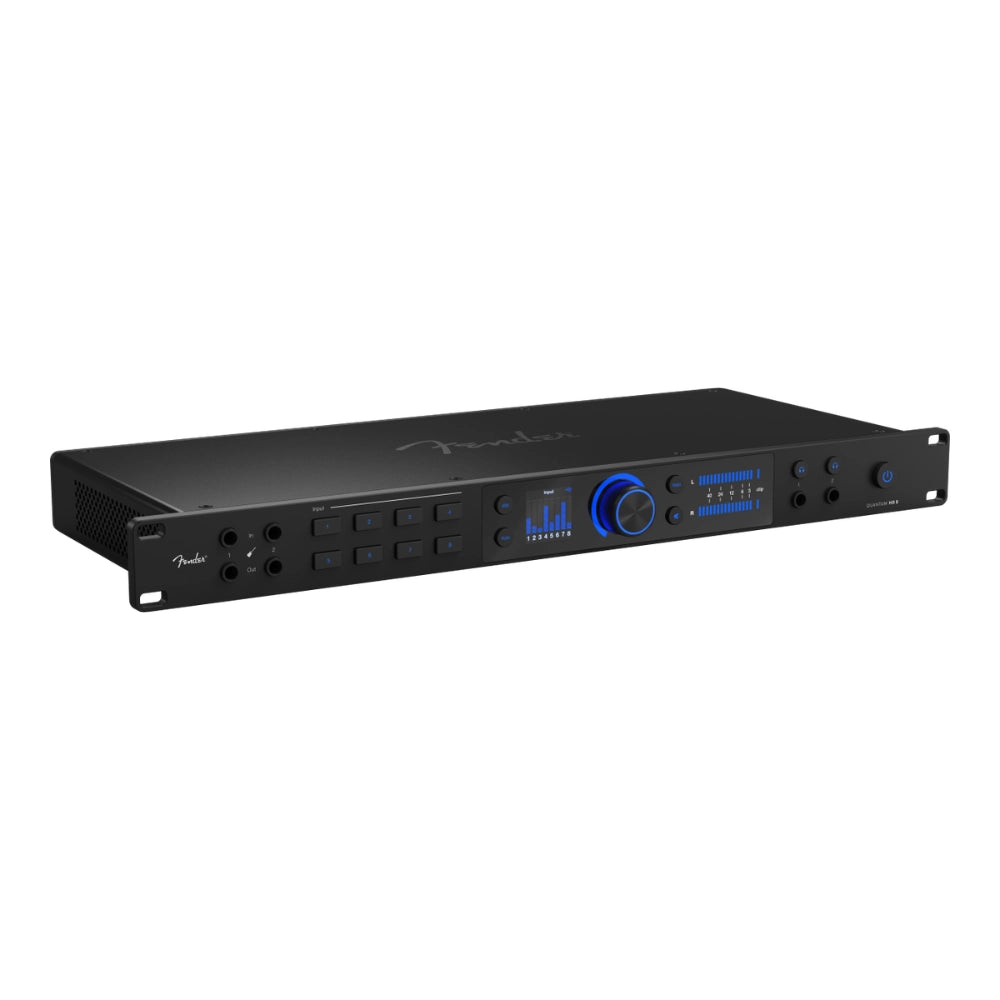

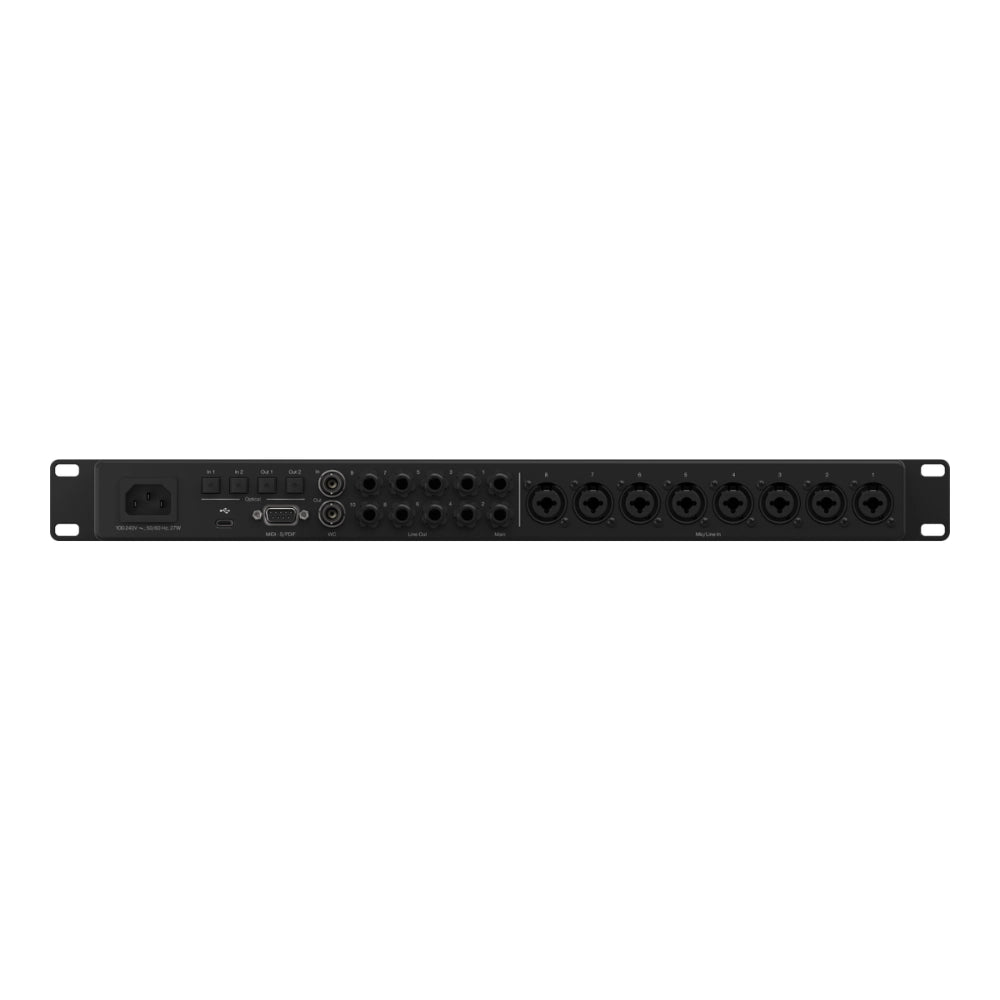

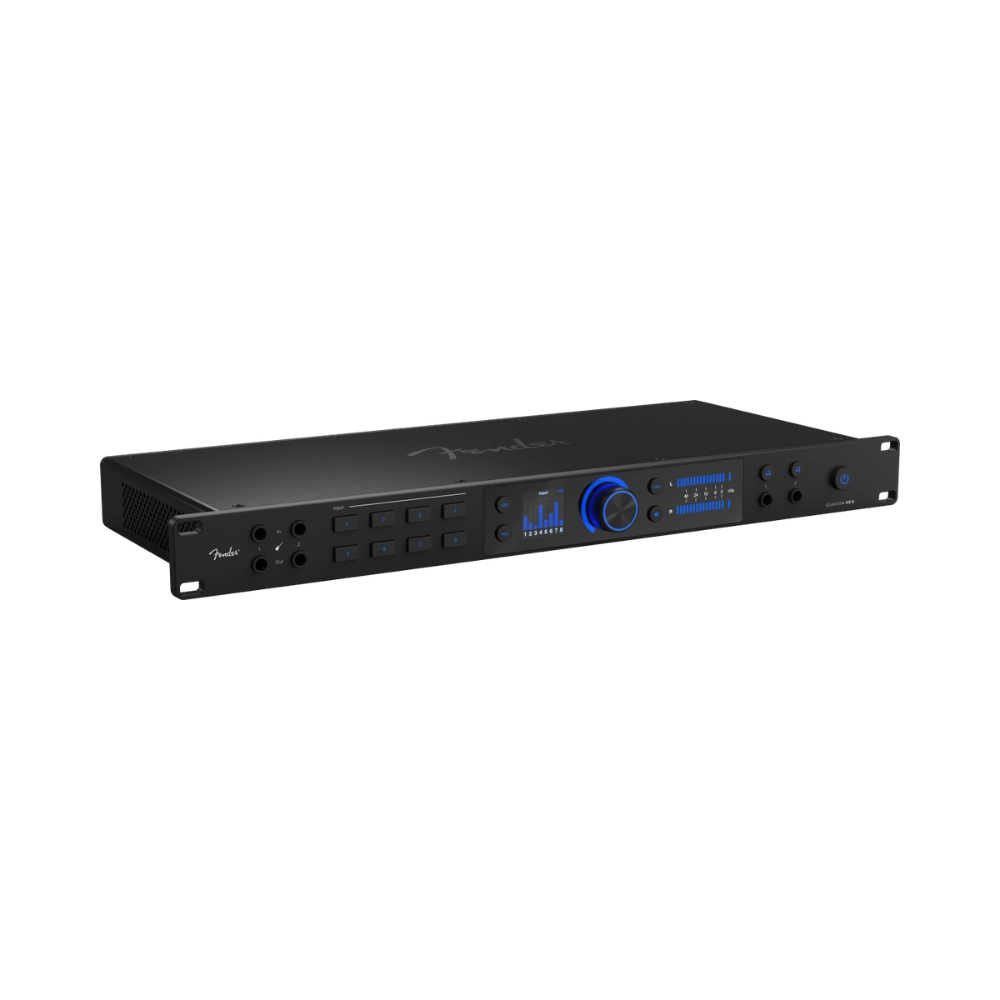

Fender Studio 2777706609 Quantum HD 8 USB-C Audio Interface

The Fender Quantum HD 8 delivers high-performance precision with 26 x 30 channels, ADAT expansion, and versatile monitoring—perfect for full-band recordings and complex production setups. Featuring MAX-HD mic preamps, ultra-low-latency drivers, and 32-bit / 192 kHz converters, the HD 8 captures every detail of instruments, vocals, and line-level sources with studio-grade fidelity.

Front-facing Fender instrument inputs, Auto Gain, and re-amp outputs provide fast setup and creative flexibility. Expanded I/O includes ADAT inputs and outputs, additional TRS line outputs, MIDI I/O, and ADAT preamp standalone mode — making it easy to scale your studio and accommodate larger sessions.

Control preamp gain, phantom power, and outputs through Fender Studio Pro or the Universal Control app, while built-in DSP monitor mixing and loopback routing ensure a streamlined workflow. The HD 8 also comes with a perpetual Fender Studio Pro license.

Features:

-Professional software included: Fender Studio Pro perpetual license
-26 x 30 USB-C recording interface with MAX-HD mic preamps and 32-bit / 192 kHz converters
-Expanded Digital I/O: 16 ADAT channels, S/PDIF I/O, and ADAT preamp standalone mode
-Front-facing Fender instrument inputs optimized for guitar and bass
-Auto Gain button for fast and accurate recording levels
-Re-amp outputs for creative tone experimentation
-DSP monitor mixer and loopback routing for streaming and recording
-Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
-Full-color high-resolution display with illuminated push encoder for intuitive operation
-MIDI I/O and DC-coupled line outputs for modular synth control

Specifications:

 General
Series: Quantum
Color: Black
Country Of Origin: Malaysia
 Electronics
Headphone Jack: Two - 1/4" TRS Female Stereo
Connectivity: USB-C®
Voltage: 230V EUR
Phantom Power: +48 VDC
 Performance
Digital Audio Bit Depth: 32-bit
Digital Audio Dynamic Range: 124 dB
 Inputs
Instrument Inputs Dynamic Range: 111 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Instrument Inputs Gain Range: 75 dB
Instrument Inputs Maximum Level: +21 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range: 118 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Line Inputs Gain Range: ± 10 dB
Line Inputs Impedance: 10K Ohms
Line Inputs Maximum Level: +18 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion: 0.001% (1 kHz, Minimum Gain)
Microphone Input Connection Type: XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range: 116 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise: -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
Microphone Preamp Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Microphone Preamp Gain Control Range: 75 dB
Microphone Preamp Input Impedance: 1600 Ohms
Microphone Preamp Maximum Input Level: +18 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion: 0.002% (1 kHz, Minimum Gain)
 Outputs
Headphone Outputs Dynamic Range: 118 dB (A-Weighted)
Headphone Outputs Frequency Response: 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Headphone Outputs Impedance Working Range: 33 Ohms
Headphone Outputs Maximum Output: 11 dBu (50 Ohms)
Headphone Outputs Total Harmonic Distortion: 0.001% (1 kHz)
Line Outputs Connection Type: 1/4" TRS Female
Line Outputs Maximum Output Level: +18 dBu (Balanced)
Line Outputs Output Impedance: 51 Ohms
Main Outputs Connection Type: 1/4" TRS Female
 Hardware
MIDI IO: 5-Pin Female DIN
Word Clock IO: BNC Connector, 4.5 Vpp @ 75Ω Load
 Accessories
Included Accessories: DB-9 breakout cable, 1.5M USB-C to USB-C cable
 Miscellaneous
Power Cable: IEC
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
