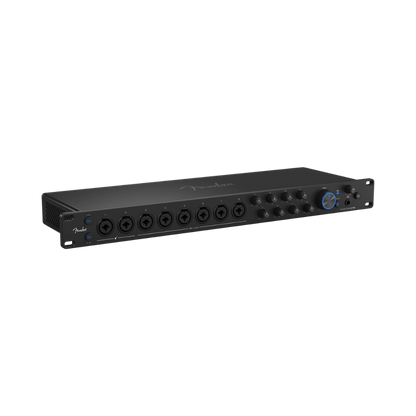

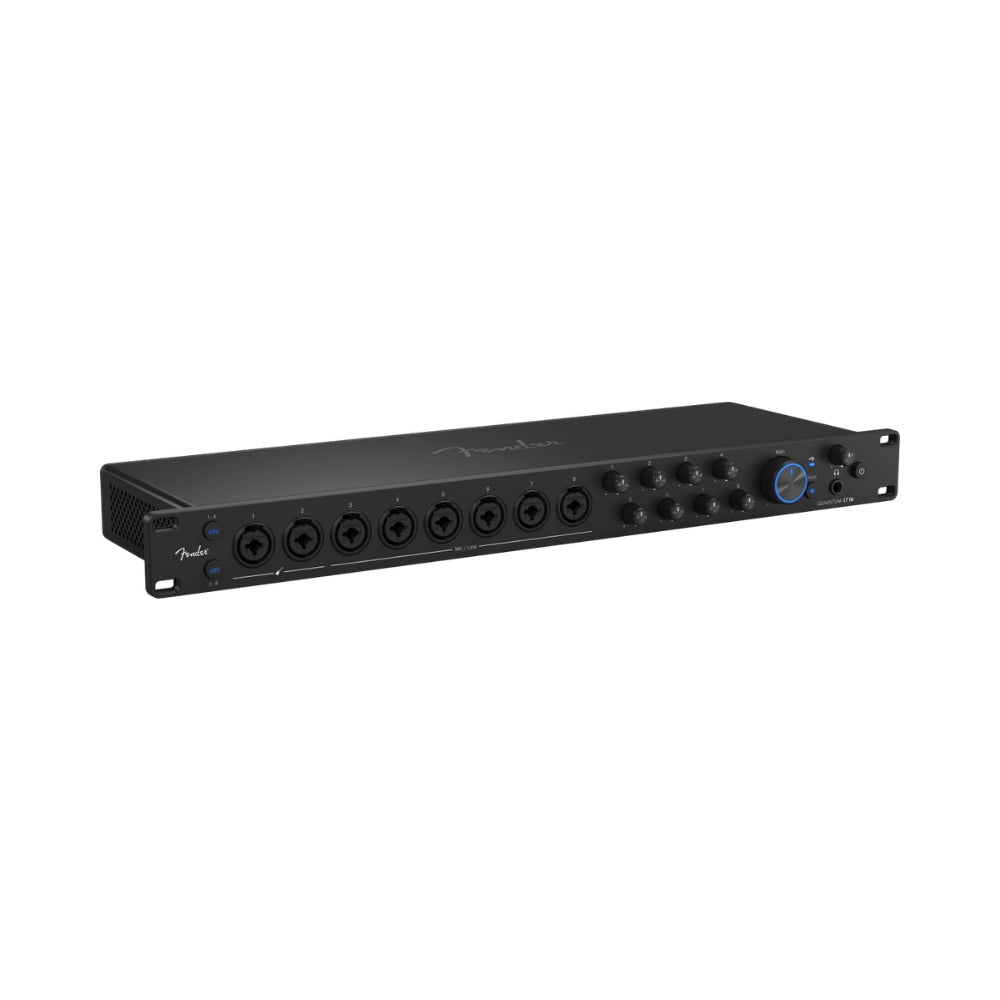

Fender Studio 2777706614 Quantum LT 16 USB-C Audio Interface

The Fender Quantum LT 16 is the ultimate interface in the LT series, built for project studios, multi-instrument setups, and electronic musicians who demand maximum flexibility. With eight MAX-HD mic preamps offering a massive 75 dB of gain — the most in its class — LT 16 captures pristine sound from large ensembles, drum kits, or multi-mic sessions. Fender-designed instrument inputs and professional-grade converters ensure guitars, basses, and all your sources sound natural and dynamic.

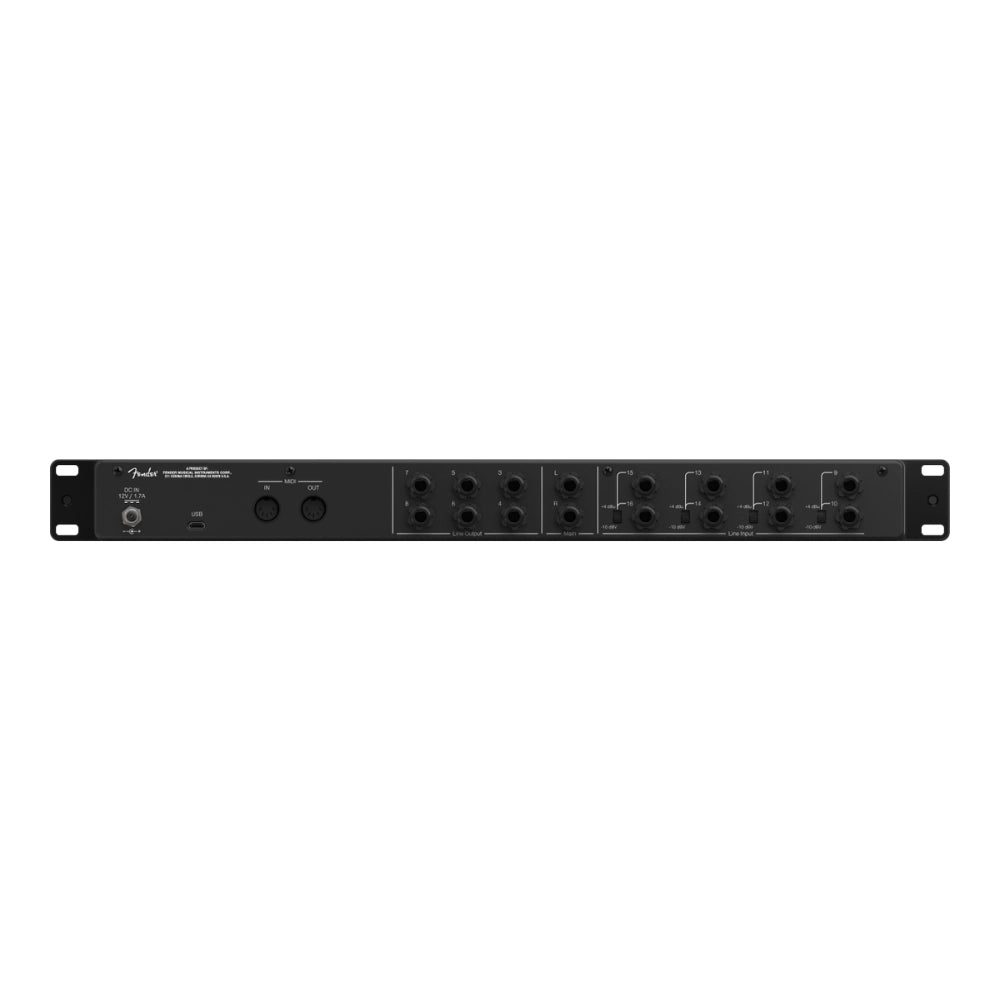

In addition to the six front panel line inputs, the LT 16 features eight rear panel TRS analog line inputs for effortless integration with outboard gear such as external mic preamps, synthesizers, mixers, or other line-level devices — expanding your studio’s sonic palette without complicating your setup.

Fender Quantum LT’s blazing-fast, custom low-latency drivers (macOS/Windows) provide an ultra-responsive recording experience, while balanced TRS outputs and a powerful headphone amp give you versatile monitoring options. LT 16 also unlocks exclusive features: Standalone “Mic Pre Mode” transforms it into an 8-channel mic preamp, DC-coupled outputs bring CV control to your modular synth rig, and 5-pin MIDI I/O ensures seamless hardware integration. A perpetual license for Fender Studio Pro is included, offering a professional DAW with exclusive Mustang and Rumble plug-ins.

Features:

-Fender Studio Pro Perpetual Included – Professional DAW with Mustang and Rumble plug-ins
-16 x 8 USB-C Interface – Ultra-low-latency custom drivers (macOS/Windows)
-Eight MAX-HD Mic Preamps with 75 dB Gain – Transparent, low-noise recording for large sessions
-A Total of 14 Line Inputs – for easy connection of mic pres, synths, mixers, and other line-level devices:

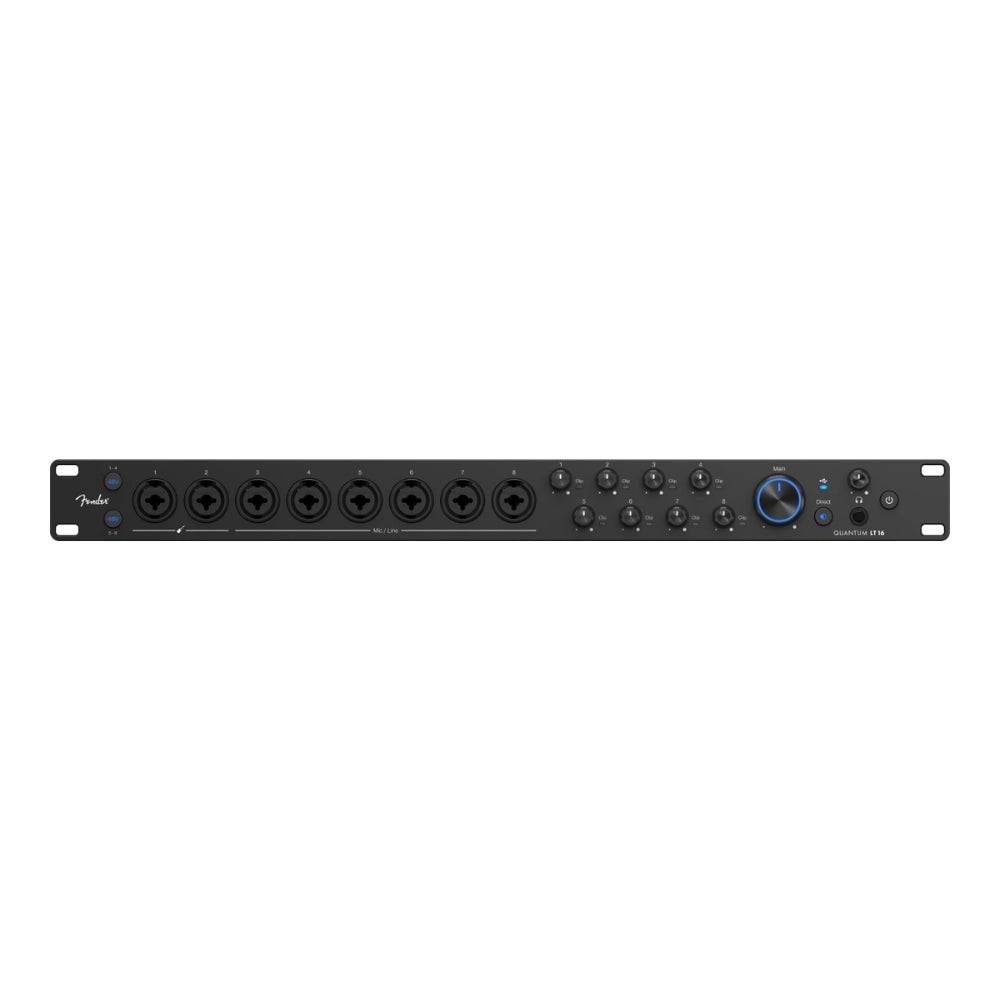

 -6 front panel XLR/TRS (combo jacks 3–8)
 -8 rear panel TRS inputs with switchable 4 dBu / -10 dBV operation
-Dual Fender-Designed Instrument Inputs – Optimized for guitars, basses, and other instruments
-Balanced TRS Outputs & Headphone Monitoring – Professional-quality, flexible monitoring
-Loopback Audio – Streaming, podcasting, and mix routing
-Standalone Mixer Mode & Mic Pre Mode – Analog mixing or 8-channel mic preamp operation
-DC-Coupled Outputs – Integrate modular synths and analog gear
-5-Pin MIDI I/O – Hardware integration without external MIDI interface

Specifications:

 General
Series: Quantum
Color: Black
Country Of Origin: Vietnam
 Electronics
Inputs: Sixteen - (Two XLR Combo Mic/Inst, Six XLR Combo Mic/Line, Eight TRS Line)
Headphone Jack: 1/4" Stereo
Line Out: Eight - 1/4" TRS Balanced
Connectivity: USB-C®
Voltage: 220-240V EU
Phantom Power: +48 VDC
 Performance
Digital Audio Bit Depth: 24 Bit
Digital Audio Dynamic Range: 115 dB
 Inputs
Instrument Input Connection Type: 1/4" TS
Instrument Inputs Dynamic Range: 114 dB
Instrument Inputs Frequency Response: 20 Hz to 20 kHz
Instrument Inputs Maximum Level: +22 dBu
Line Input Connection Type: 1/4" TRS Female
Line Inputs Dynamic Range: 115 dB (+4 dBu) / 113 dB (-10 dBV)
Line Inputs Frequency Response: 20 Hz to 20 kHz
Line Inputs Maximum Level: +18 dBu
Line Inputs Total Harmonic Distortion: 0.001 % (+4 dBu) / 0.0009 % (-10 dBV)
Microphone Input Connection Type: XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range: 115 dB
Microphone Preamp Equivalent Input Noise: -128.6 dBu
Microphone Preamp Frequency Response: 20 Hz to 20 kHz
Microphone Preamp Gain Control Range: 75 dB
Microphone Preamp Maximum Input Level: +18 dBu
Microphone Preamp Total Harmonic Distortion: 0.001 %
 Outputs
Headphone Outputs Dynamic Range: 114 dB
Headphone Outputs Frequency Response: 20 Hz to 20 kHz
Headphone Outputs Maximum Output: 142 mW/Channel (60Ω Load)
Headphone Outputs Total Harmonic Distortion: 0.01 %
Line Outputs Connection Type: 1/4" TRS Female
Line Outputs Maximum Output Level: +18 dBu
Main Outputs Connection Type: 1/4" TRS Female
 Hardware
MIDI IO: 5-Pin Female DIN
 Accessories
Included Accessories: 1.5M USB-C to USB-C cable, Quick Start Guide
 Miscellaneous
Power Cable: 12 VDC, External Power Supply
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (kHz)
